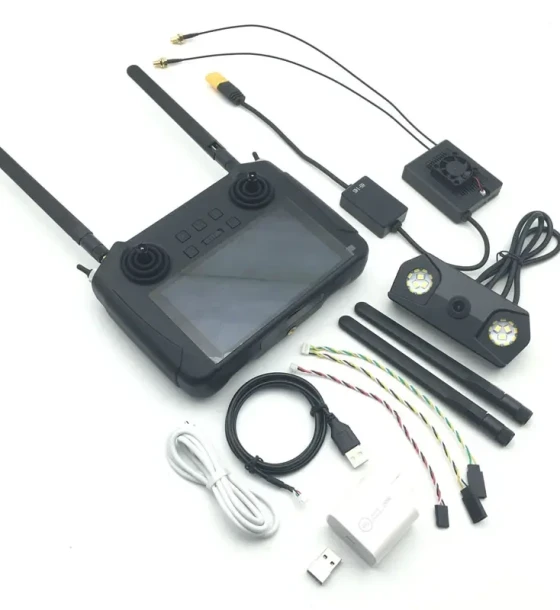

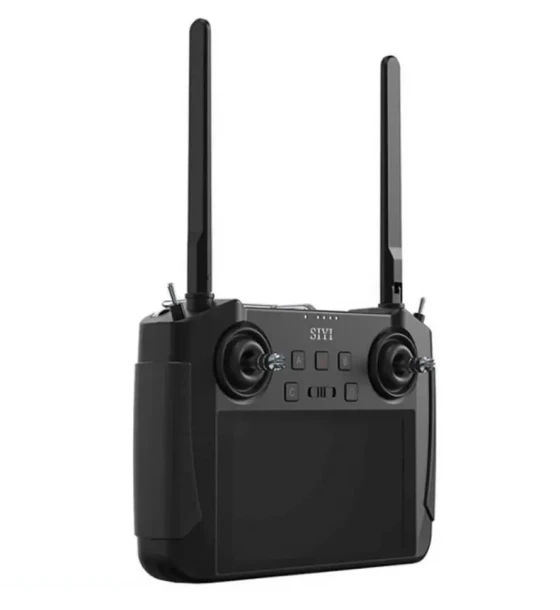

The SIYI MK15 is a high-performance HD digital FPV transmitter and ground control station designed for professional UAV operations. This advanced system offers a combination of long-range RC control, HD video transmission, and bi-directional telemetry in a sleek, ergonomic handheld unit.
Powered by Android and supporting versatile telemetry protocols, the MK15 is ideal for drone pilots, developers, and industries needing real-time video and robust controlβwhether for inspection, surveillance, mapping, or agricultural UAVs.
π§ Technical Specifications
Feature | Specification |
---|---|
Model | SIYI MK15 |
Operating System | Android 9.0 |
Video Transmission | 1080p 60fps (H.264 / H.265 Encoding) |
Control Range | Up to 15 KM (LOS conditions) |
Latency | <120ms (video + control) |
Frequency Bands | 2.4GHz / 5.8GHz dual-band (adaptive) |
Channels | 15 configurable channels |
Battery Life | 6β10 hours (built-in 10000mAh Li-ion) |
Display | 5.5β Full HD Touchscreen (1920x1080) |
Processor | Quad-core ARM Cortex-A53 |
Ports | USB-C, HDMI Out, Micro SD, Ethernet, UART |
Protocols Supported | MAVLink, SBUS, PPM, PWM |
Storage | 32GB internal + microSD expansion |
Weight | 950g (approx.) |
Antenna Type | Dual High-Gain Omnidirectional |
β Advantages
β All-in-One Ground Station β Combines RC control, telemetry, and HD video.
β HD Touch Display β Built-in screen eliminates need for external devices.
β Long Range & Low Latency β Supports critical missions without lag.
β Open Protocols β Supports MAVLink, ideal for PX4/ArduPilot systems.
β Customizable Buttons β 15 channels for flexible mission configuration.
β Industrial Grade Durability β Robust design for rugged field usage.
πΌ Use Cases
Application | Functionality Provided |
---|---|
Commercial Drones | Long-range flight control + live HD video |
Survey & Mapping UAVs | Reliable telemetry + mission interface |
Agricultural Drones | Monitor spraying or seeding operations remotely |
Security Drones | Real-time streaming for surveillance missions |
Robotics | Wireless control & monitoring of UGV/USV |
Description
The SIYI MK15 is a high-performance HD digital FPV transmitter and ground control station designed for professional UAV operations. This advanced system offers a combination of long-range RC control, HD video transmission, and bi-directional telemetry in a sleek, ergonomic handheld unit.
Powered by Android and supporting versatile telemetry protocols, the MK15 is ideal for drone pilots, developers, and industries needing real-time video and robust controlβwhether for inspection, surveillance, mapping, or agricultural UAVs.
π§ Technical Specifications
Feature | Specification |
---|---|
Model | SIYI MK15 |
Operating System | Android 9.0 |
Video Transmission | 1080p 60fps (H.264 / H.265 Encoding) |
Control Range | Up to 15 KM (LOS conditions) |
Latency | <120ms (video + control) |
Frequency Bands | 2.4GHz / 5.8GHz dual-band (adaptive) |
Channels | 15 configurable channels |
Battery Life | 6β10 hours (built-in 10000mAh Li-ion) |
Display | 5.5β Full HD Touchscreen (1920x1080) |
Processor | Quad-core ARM Cortex-A53 |
Ports | USB-C, HDMI Out, Micro SD, Ethernet, UART |
Protocols Supported | MAVLink, SBUS, PPM, PWM |
Storage | 32GB internal + microSD expansion |
Weight | 950g (approx.) |
Antenna Type | Dual High-Gain Omnidirectional |
β Advantages
β All-in-One Ground Station β Combines RC control, telemetry, and HD video.
β HD Touch Display β Built-in screen eliminates need for external devices.
β Long Range & Low Latency β Supports critical missions without lag.
β Open Protocols β Supports MAVLink, ideal for PX4/ArduPilot systems.
β Customizable Buttons β 15 channels for flexible mission configuration.
β Industrial Grade Durability β Robust design for rugged field usage.
πΌ Use Cases
Application | Functionality Provided |
---|---|
Commercial Drones | Long-range flight control + live HD video |
Survey & Mapping UAVs | Reliable telemetry + mission interface |
Agricultural Drones | Monitor spraying or seeding operations remotely |
Security Drones | Real-time streaming for surveillance missions |
Robotics | Wireless control & monitoring of UGV/USV |
